Ranger™ Split Top Project Table, Tool Drawer, 60" W

Front Angle - 7774A

Ranger™ Split Top Project Table, Tool Drawer, 60" W

Model # 7774A
Starting At
  • The perfect design solution with an angled and horizontal worksurface all-in-one project table. With LPL and HPL laminate choices and a large horizontal surface to accommodate a laptop and/or keyboard the Ranger® Project Table is a unique product bringing together Ranger's drafting heritage into a modern workplace.
  • Available in a 60" width and 31" depth.
  • Available in low pressure and high pressure on the tilt surface.
  • Tilt surface ships with steel end cleats and pencil/marker stop.
  • Tilt angle 50° from horizontal.
  • Grommet standard and centered on rear horizontal surface worksurface.
  • Table legs contain adjustable leveling glides.
  • Shallow plan drawer convenient for storage of papers and reference materials.
  • Shallow plan drawer dimensions: 1 5/8"H x 36 1/4"W x 27 3/8"D.
  • Top height approximately 37" from floor.
  • Tool drawer comes with insert tray and lock with two keys. Tool drawer dimensions: 3 3/8"H x 10 3/8"W x 27 3/8"D.
GSA Certified: No

* Click item names to download individually or check the boxes and click Download Selected to get a zip copy of multiple files.

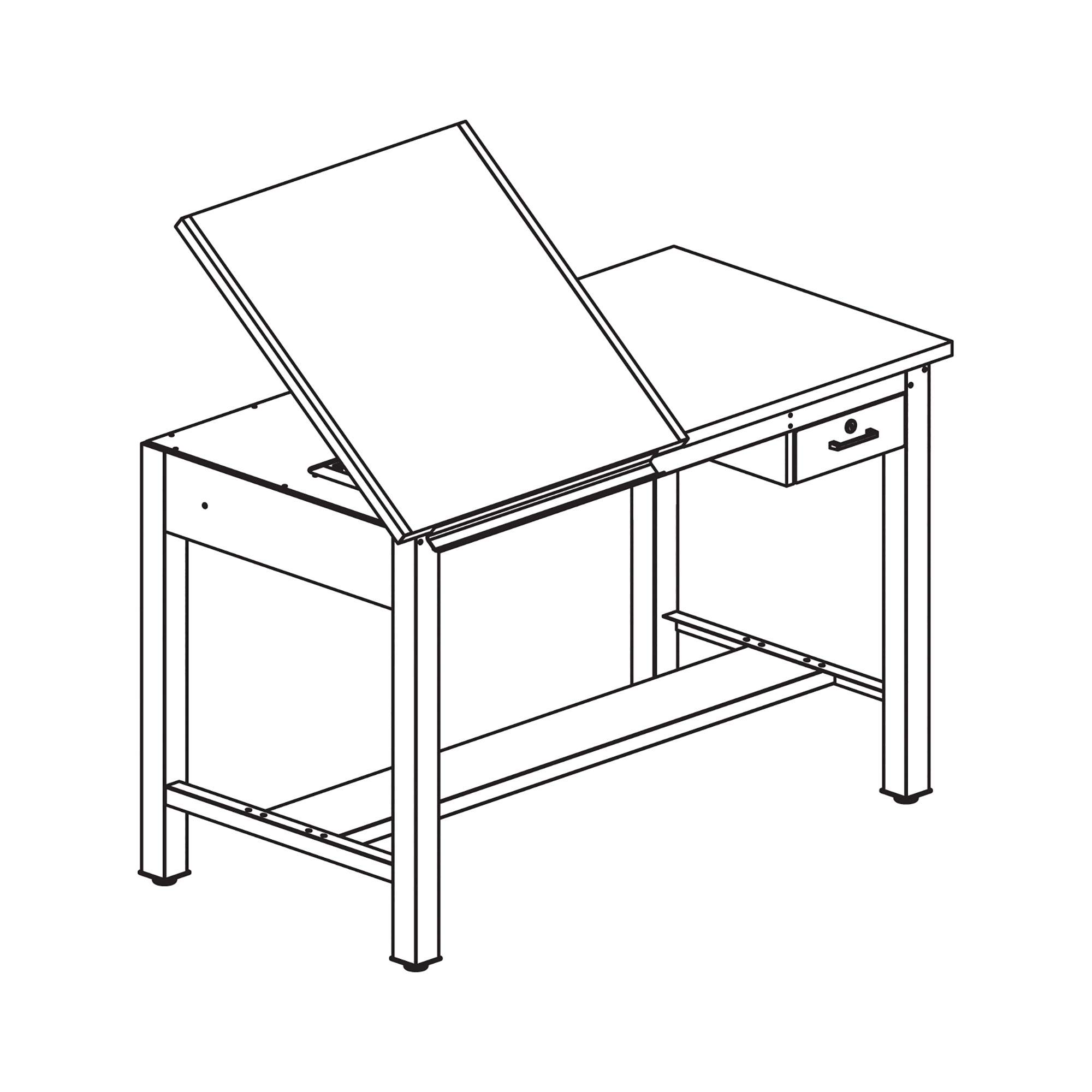

Line Drawing
