Ranger™ Split Top Project Table, Tool Drawer, 60" W

Model # 7774LB

The perfect design solution with an angled and horizontal worksurface all-in-one project table. With LPL and HPL laminate choices and a large horizontal surface to accommodate a laptop and/or keyboard the Ranger® Project Table is a unique product bringing together Ranger's drafting heritage into a modern workplace.
Available in a 60" width and 31" depth.
Available in low pressure and high pressure on the tilt surface.
Tilt surface ships with steel end cleats and pencil/marker stop.
Tilt angle 50° from horizontal.
Grommet standard and centered on rear horizontal surface worksurface.
Table legs contain adjustable leveling glides.
Shallow plan drawer convenient for storage of papers and reference materials.
Shallow plan drawer dimensions: 1 5/8"H x 36 1/4"W x 27 3/8"D.
Top height approximately 37" from floor.
Tool drawer comes with insert tray and lock with two keys. Tool drawer dimensions: 3 3/8"H x 10 3/8"W x 27 3/8"D.

* Click item names to download individually or check the boxes and click Download Selected to get a zip copy of multiple files.

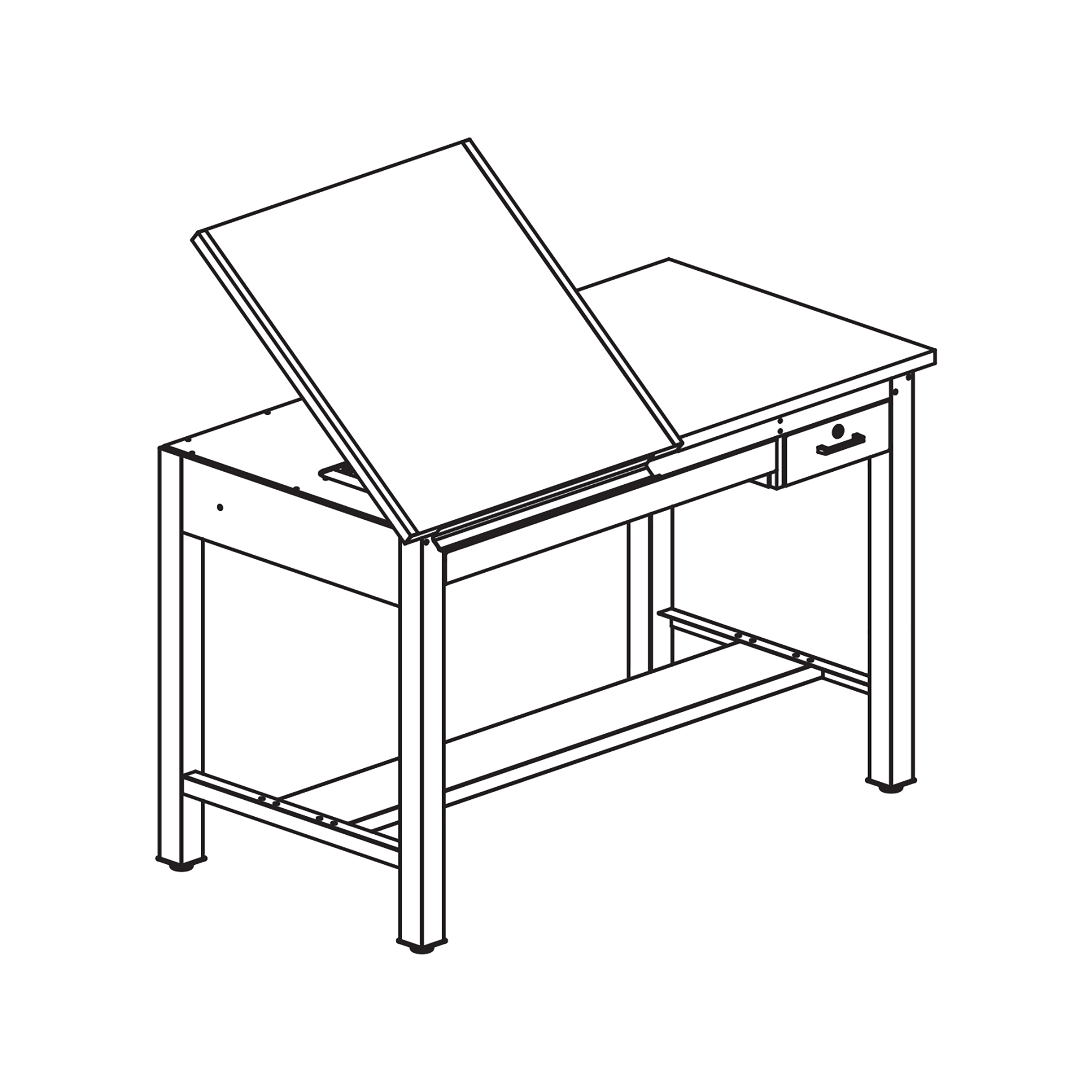

Line Drawing
